OVERVIEW:
AUTOMATIC WIDE BELT SANDER
H SERIES
(HEAVY DUTY: SINGLE HEAD/DOUBLE HEAD SANDER)
DESCRIPTION
CONSTRUCTION
-
The machine frame is manufactured of heavy duty steel plate to minimize vibration and deflection.
-
All parts of the machine can be easily obtained for maintenance and service.
TABLE AND CONVEYOR BELT
-
Under the sanding aggregate and the pressurerolling, it’s the stable feed table.
-
Around the table, it runs an endless anti-silpconveyor belt.
-
The drive is poweredby a strong feed motor and a variable speed control from 4 to 16 meters per minute.
-
The conveyor belt is adjustable with an auto tracking unit.
SANDING BELT
-
The sanding belt runs around the contact drum and the tension (or idle) rolling.
-
The tracking of the sanding belt is achieved by an eletriceye.
-
Changing the sading belt is very simple & quick.
CONTACT DRUM
-
A perfect contack drum is essential for sanding without leaving cross marks.
-
The contack drum consists of a steed rolling covered with heavy-duty rubber.
-
Besides the standard 75 (or 60) shore hardness, there are rollers also available of hardness varying from 50 to 90 shore.
PRESSURE ROLLER
-
The spring loaded hold-down rollers are mounted at the infeed and outfeed the machine to ensure positive feedings.
AUTOMATIC BRAKING
-
The air disc brakes will stop machine if emergent stop or limit switch is tripped.
-
The machine will automatically stop its power off.
SIMPLE CONTROLS
-
The operation controls are centralized on a simple control panel large, clearly-identified and color coded push buttons can simplify set-up and start-up as well.
QUICK READING OPENING SCALE
-
Simple read-scale to indicate the accurate feed bed opening when set-up is made.
SAFETY FEATURES
All machines are provided with security protection deivces:
-
Emergency stop button
-
Belt tracking limit switch
-
Safety bar
-
Automatical stop if power off
-
Sanding belt protection device
The drum will keep stationary if sanding belt is not tensioned before operation.
![](https://static.wixstatic.com/media/d770bb_fb895647ba0f444eb8103f57127a7ba7.jpg/v1/fill/w_64,h_64,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/d770bb_fb895647ba0f444eb8103f57127a7ba7.jpg)
SANDING BELT CAN BE QUICKLY STOPPED BY DISC BRAKE DEVICE.
![](https://static.wixstatic.com/media/d770bb_6c5e948f5dcc438b9351b22e89c2a4da.jpg/v1/crop/x_0,y_76,w_500,h_386/fill/w_83,h_64,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/d770bb_6c5e948f5dcc438b9351b22e89c2a4da.jpg)

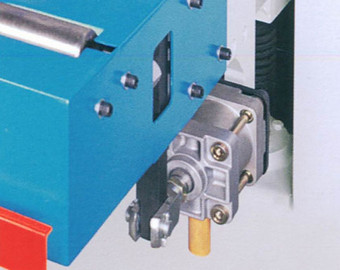

AUTOMATIC CONVEYOR BELT TRACKING CONTROL.
![](https://static.wixstatic.com/media/d770bb_2e32dfb7374d470e902f60799a2191c4.jpg/v1/fill/w_67,h_68,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/d770bb_2e32dfb7374d470e902f60799a2191c4.jpg)
TWO HEADS
-
Can be operated in 3 modes (optional):
-
Drum only.
-
Platen only.
-
Drum and platen is standem.
-
Two-head sander can produce fine finishing result in one single pass.
![](https://static.wixstatic.com/media/d770bb_dffa0956f38444afb4e90f1bcc0c7322.jpg/v1/fill/w_85,h_52,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/d770bb_dffa0956f38444afb4e90f1bcc0c7322.jpg)
F: “fullpower” (brand)
T: top sander
C: contact drum head
P: combination head of drum and platen
Be: sanding belt length 75”
S: sealer sander (ftc-600s, ftc-900s, ftc-1100s, ftc-1300s)
H: heavy duty
J: economic model
E: standard model
(verious optional accessories available upon customer’s request, please refer to technical date sheet.)
SPECIFICATION
![](https://static.wixstatic.com/media/db830c_ab13b3743c654ce6bf31ba5c6f44c9ef~mv2_d_2852_2606_s_4_2.jpg/v1/fill/w_153,h_140,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/db830c_ab13b3743c654ce6bf31ba5c6f44c9ef~mv2_d_2852_2606_s_4_2.jpg)
