FULPOW

BAND SAWS

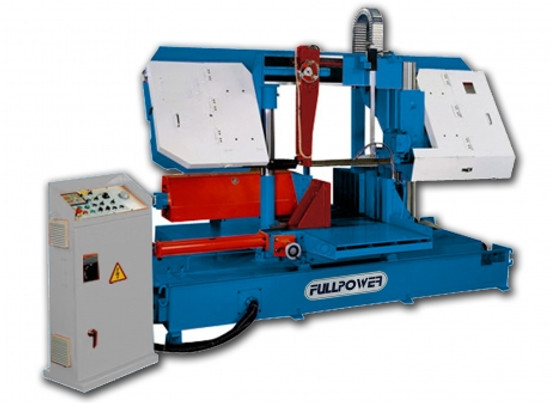

DOUBLE COLUMN HEAVY DUTY AUTOMATIC HORIZONTAL BAND SAWS

DOUBLE COLUMN HEAVY DUTY AUTOMATIC HORIZONTAL BAND SAWS

Model:

  • ABS-600

OVERVIEW:

DOUBLE COLUMN HEAVY DUTY AUTOMATIC HORIZONTAL BAND SAWS

Description



STANDARD FEATURES:

  1. Precise cut off length setting.

  2. Auto head elevation and quick approach control.

  3. Cutting piece counter with auto-shut-off.

  4. Multiple stroke counter for long pieces. (standard 9 times)

  5. Power-driven blade cleaning brush and coolant cleaning flush hose.

  6. Carbide and roller blade guides.

  7. Hydraulic shuttle vice back-jaw feed method.

  8. Hydraulic blade tension control.

  9. Work-area light.

  10. Automatic chip conveyor.

  11. Two-way open rear vice jaws to ensure precise bar-feed repeatability even in cutting a little bit warped / surface rough works.

  12. Unique split machine vice allows cutting to within as little as 50 mm of end automatically.

PRECISE DIGITAL COUNTER FOR CUT DEPTH CUTTING.

HYDRAULIC SHUTTLE VISE FOR STOCK FEEDING.

MOTOR & CHAIN DRIVE ROLLER TABLE.

CARBIDE GUIDES WITH HYDRAULIC CONTROL.

AUTO HEAD-ELEVATION AFTER COMPLETE A CUT.

HYDRAULIC BLADE TENSION CONTROL.

POWER DRIVEN BLADE CLEANIBG BRUSH & COOLANT CLEANING FLUSH HOSE.

IDLE WHEEL MOTION DETECTOR FOR BLADE JAM/BREAK SHUT-OFF.

STANDARD ACCESSORIES

  1. TOOLS WITH TOOL BOX - 1SET

  2. 2M (7 FT) LONG ROLLER TABLE WITH VERTICAL ROLLER GUIDES - 1SET

  3. BAND-CLEANING WIRE BRUSH - 2 PIECES

  4. BAND SAW BLADE - 1 PIECE

  5. HYDRAULIC BLADE TENSION - 1SET

  6. AUTOMATIC CHIP CONVEYOR - 1SET

  7. INSTRUCTION MANUAL AND PARTS LIST - 1 COPY



OPTIONAL ACCESSORIES

  1. VARIABLE BLADE SPEED DRIVE.

  2. VARIABLE VISE PRESSURE SYSTEM.

  3. AMPLIFYING VALVE FOR AUTO-ADJUSTING CUTTING FEED-RATE.

SPECIFICATION
